Horizontal packing machine – film roll type
Customer Cases

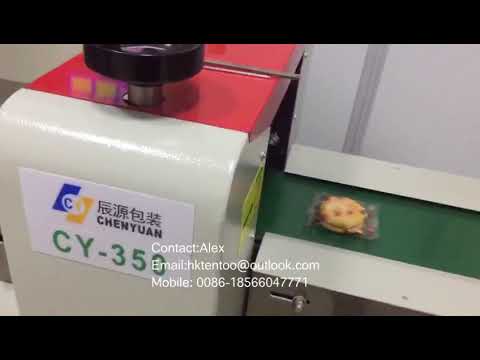

For biscuit packing
Application
Suitable for various kinds of regular objects, like biscuits, pies, chocolates, bread, instant noodles, moon-cakes, medicine, daily appliances, industrial spare parts, paper boxes, pallet, etc.
Bag Samples
Pillow bag
Features
- Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
- Human computer interface (HCI), easy for parameter setting.
- Self checking function, fault self detected, clearly display.
- High sensitivity photoelectric eyes, color code tracking, digitizing input accurate positioning when cutting and sealing.
- Temperature controlled by independent PID, suitable for different packing materials.
- Positioned stop setting, no sticking knife.
- Simple power train system, working reliable, easy for maintenance.
- All controlled by software, easy for function adjustment and technology upgrade.
Parameters
| Model | TTH-250B | TTH-320B | TTH-350B | TTH-400B |
| Max. Film Width(mm) | 250 | 320 | 350 | 400 |
| Bag length(mm) | 65~190/ 120~280 | 65-190 / 120-280 | 65~190/ 120~280 | 130~320 |
| Bag width(mm) | 30~110mm | 50-160mm | 50~160mm | 50~185mm |
| Max. Product height(mm) | 40mm | 40mm | 40mm | 40mm |
| Speed | 40~230bag/min | 40~230bag/min | 40~230bag/min | 40~230bag/min |
| Power | 220V 50/60Hz 2.4Kw | 220V 50/60Hz 2.6Kw | 220V 50/60Hz 2.6Kw | 220V 50/60Hz 2.6Kw |
| Size(mm) | L3770*W670*H1450 | L3770XW720XH1450 | L4020*W770*H1450 | L4020*W800*H1450 |
| Weight(kg) | 400 | 450 | 500 | 550 |
